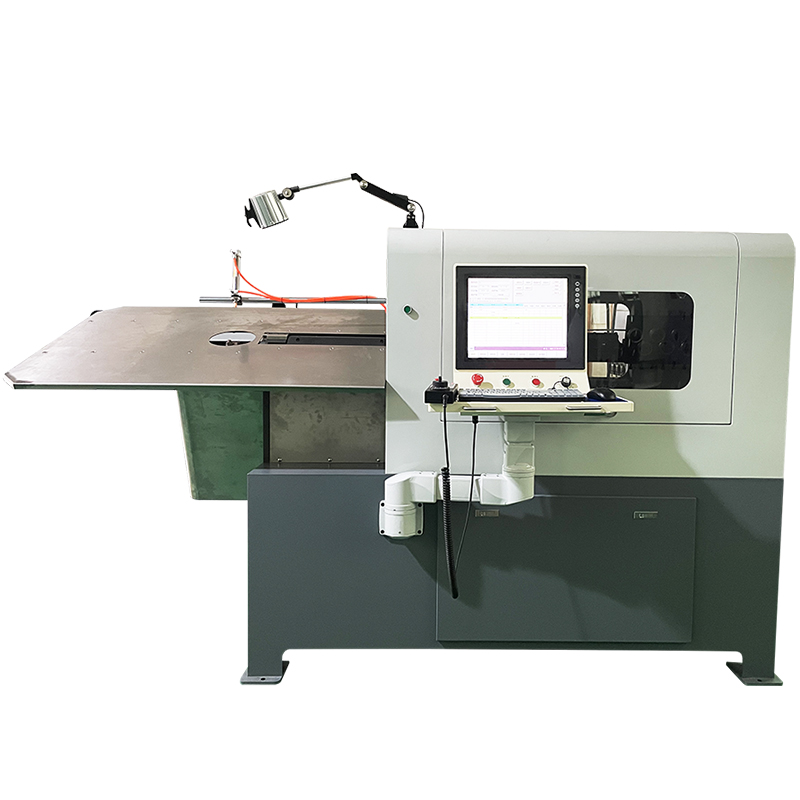

US-2D408 Wire Bending Machine

US-2D408 Wire Bending Machine
Send Inquiry
Description
Argument
Products Description

    1. The machine adopts imported motor and reducer, and the production speed is more than 20% higher than that of domestic counterparts and similar products. Bearing, gear and other important parts imported from Taiwan, the equipment is durable and reliable.

    2. The computer interface can adjust the speed and process while production. Production efficiency and output are displayed on the computer interface, the equipment can automatically stop after reaching the specified output.

    3. High precision, can be used for wire forming products within the range of 3.0-10.0mm wire diameter, with the error reduced to 0.1mm.Production can be achieved at the slowest bending angle and angle without any change, production stability is better.

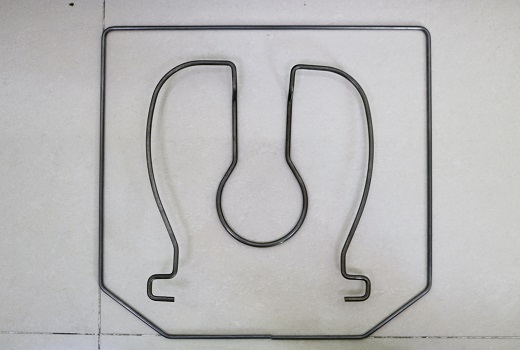

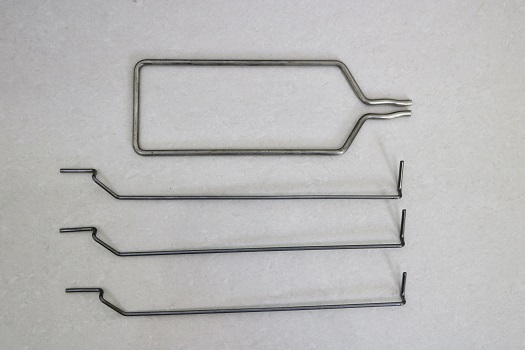

    4. The wire that the machine can bend includes: iron wire, stainless steel wire, non-ferrous metal wire and special materials (including round wire, square wire, flat wire, etc.), can be bent into a variety of plane irregular shape and a variety of plane buckle, hook, etc.

    Model

    US-2D408

    Wire Diameter

    Ø4.0Ø8.0MM

    Axis

    4

    Wire Feed Wheel Sets

    3Sets

    Wire Feeding Axis

    2.9KW

    External Torsion Axis

    1.3KW

    Cutter Axis

    1.0KW

    Platform Lifting Axis

    1.0KW

    Dimension (LxWxH)

    3400*1300*1750(mm)

    Weight (kg)

    1500kg



Tags: torsion springs machine compressions springs tension springs machine wire forms machines metal wire forming machine
