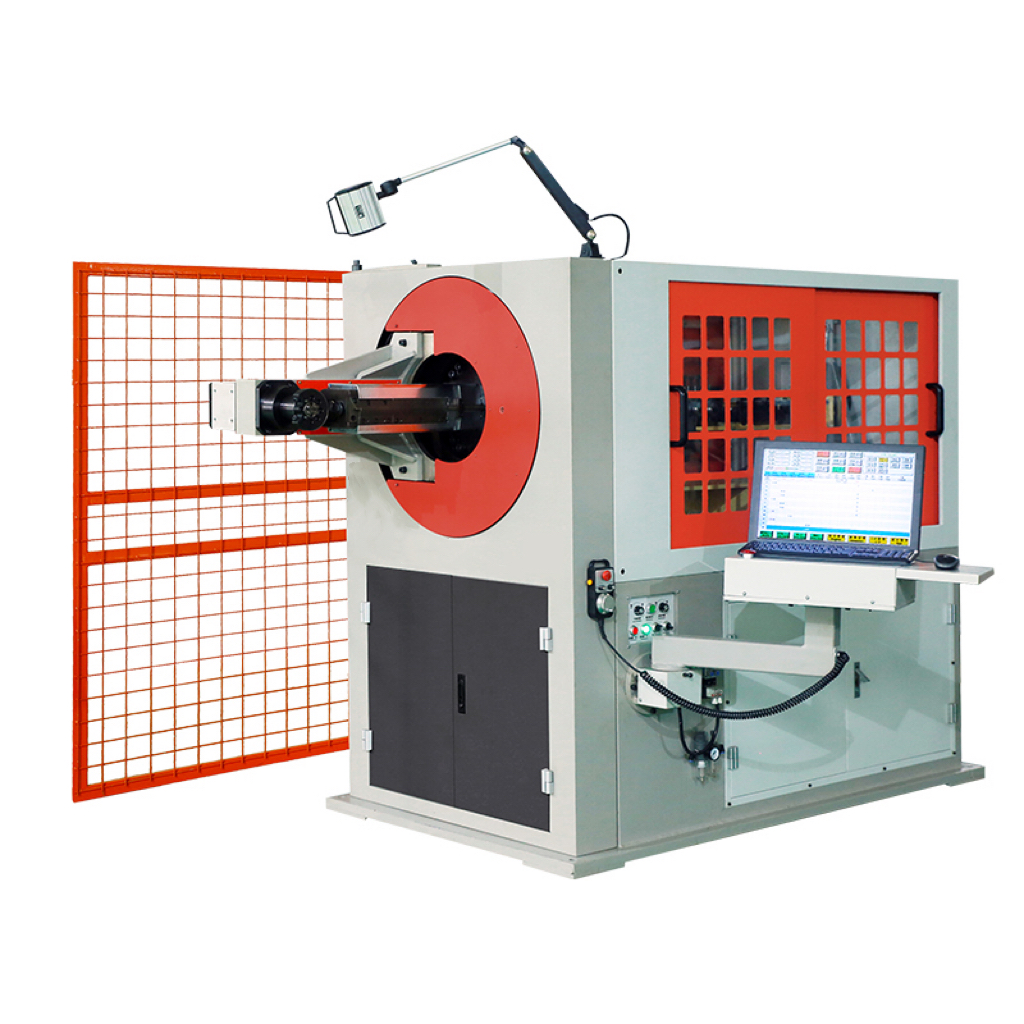

US-3D580 Wire Bending Machine

US-3D580 Wire Bending Machine
Send Inquiry
Description
Argument
Products Description

    1. The 3D wire bending machine adopts Taiwan computer control system and Japanese servo motor, which is independently controlled by several sets of servomotors, with powerful expansibility and features of convenient, fast, high speed and high precision.

    2. The computer startup and shutdown speed is fast, interface language can switch between Chinese and English, easy to operate.The computer interface can adjust the speed while producing, and the production speed is more than 25% higher than that of domestic counterparts.

    3. Bearing, gear, guide rail and other important parts are imported accessories.Protective device anti - collider, composite tool to complete all procedures, quality is guaranteed and less wearing parts.

    4. High precision, can do wire forming products within the range of 3.0-12mm wire diameter, the error is reduced to 0.1mm. The use of the automatic wire feeder allows the machine to change the wire operation more convenient.

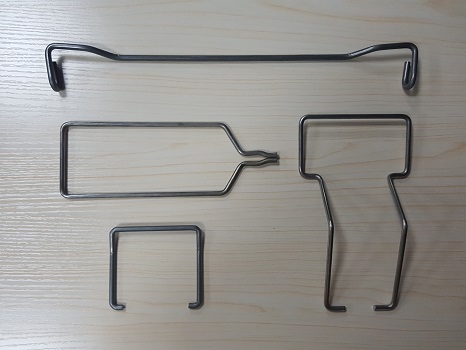

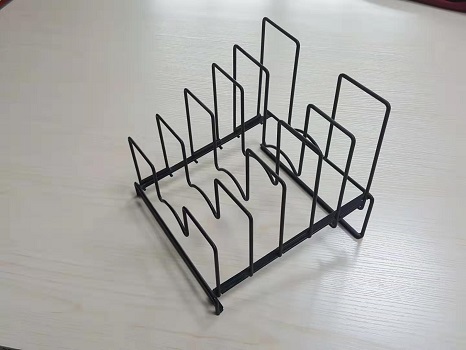

    5, The machine is mainly used in the auto parts industry; pet cage accessories; garden tool accessories; electronic and electrical products forming; toy accessories forming; sports equipment accessories forming; kitchen and bathroom pendant hardware forming; handicraft forming; supermarket shelf accessories forming and other types of metal wire forming field.

    Model

    US-3D580

    US-3D5120

    Wire Diameter

    Ø3.0Ø8.0MM

    Ø6.0Ø12.0MM

    Axis

    5

    5

    Wire Feed Wheel Sets

    3Sets

    3Sets

    Wire Feeding Axis

    3.8KW

    15KW

    Arm Fotation Axis

    2.7KW

    3.5KW

    Cutter Axis

    1.0KW

    1.0KW

    Forward And Backward Axis

    1.0KW

    1.0KW

    Angle Folding Axis

    2.0KW

    2.0KW

    Dimension (LxWxH)

    3300*2000*1900(mm)

    3600*2350*1900(mm)

    Weight (kg)

    2800kg

    3500kg



Tags: torsion springs machine compressions springs tension springs machine wire forms machines metal wire forming machine
