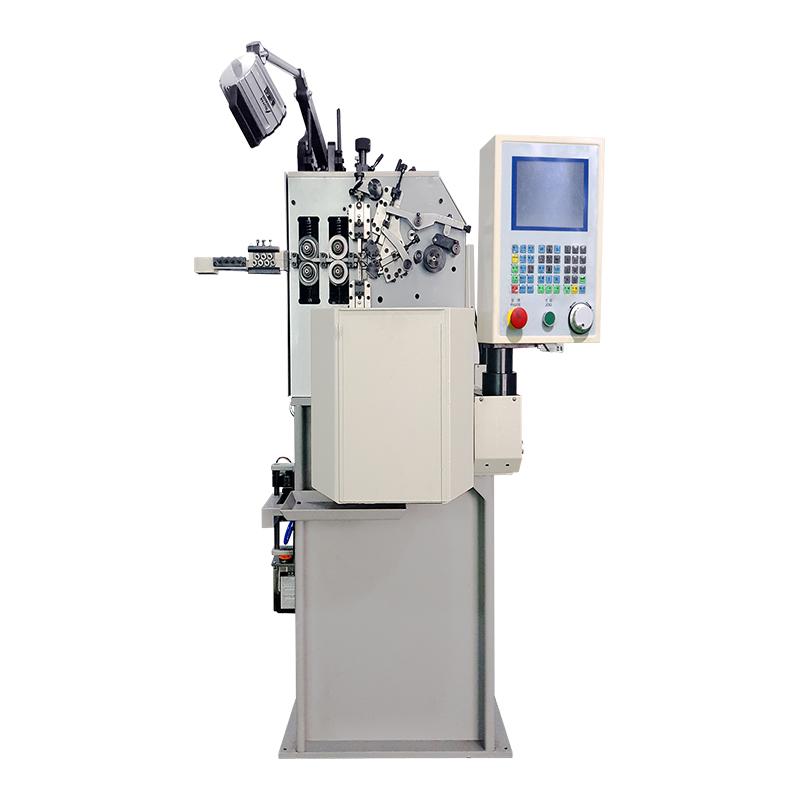

US-212 Spring Coiling Machine

US-212 Spring Coiling Machine
Send Inquiry
Description
Argument
Products Description

    1. The computer spring coiling machine is divided into cam axis and wire feed axis. The pitch, outer diameter and cutting knife are driven by CAM motor. CAM and wire feeding can be operated independently or synchronously, with unlimited wire feeding length and on-line programming.

    2. The computer display screen can adjust the speed and modify the program at the same time of production. The production efficiency and output can be displayed on the computer interface. The equipment can stop automatically after reaching the specified output.

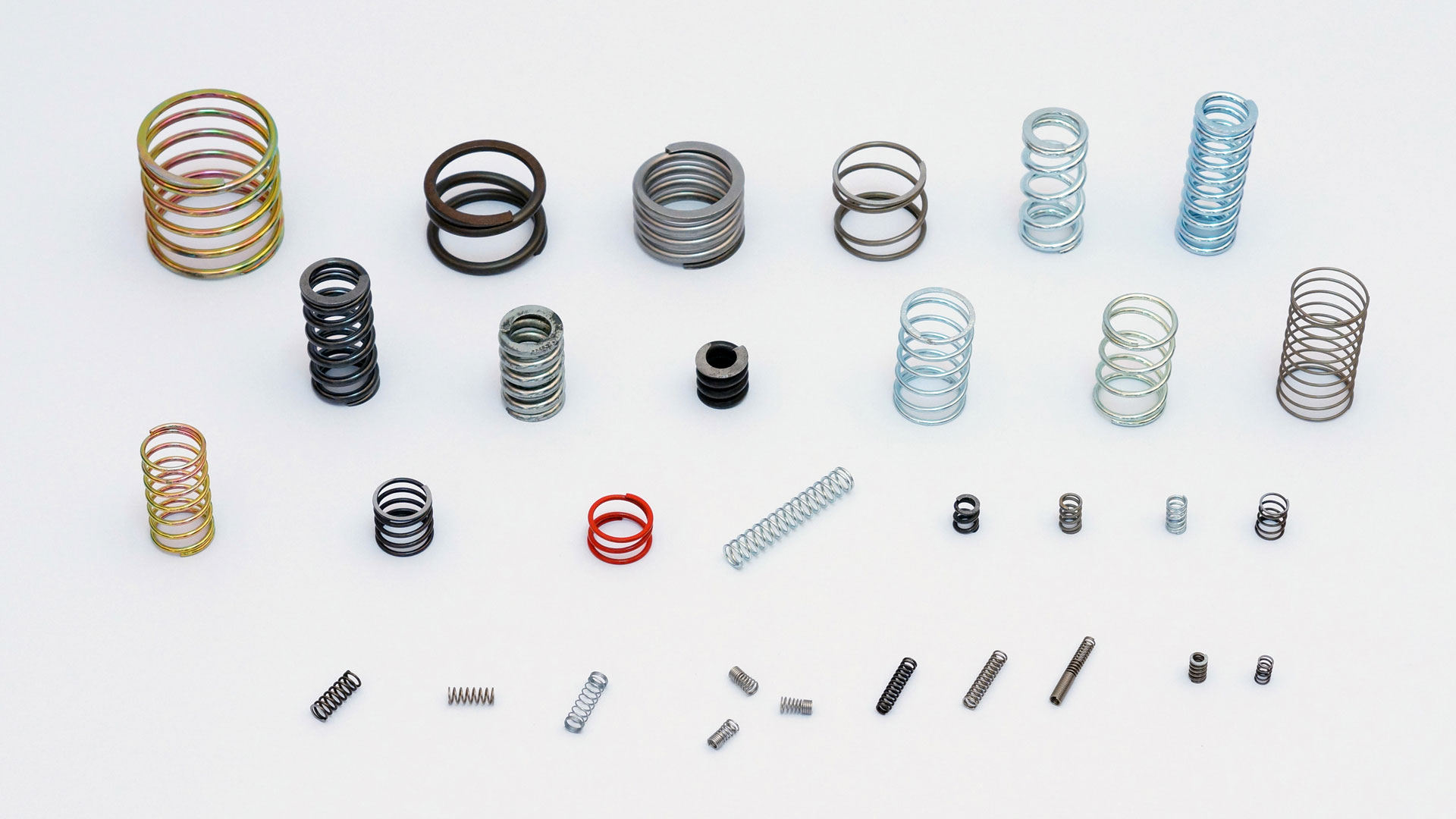

    3. The spring coiling machine can be applied to the production of compression springs, simple torsion springs, small hook springs, oil seal springs, electronic springs and other precision springs

    Model

    US-208

    US-212

    US-220

    Wire Diameter

    Ø0.15Ø0.8MM

    Ø0.3Ø1.2MM

    Ø0.5Ø2.0MM

    Axis

    2

    2

    2

    Max.Outside Diameter

    20mm

    25mm

    45mm

    Wire Feed Wheel Sets

    1Sets

    2Sets

    2Sets

    Cam Axis

    0.75KW

    1.0KW

    2.7KW

    Wire Feeding Axis

    0.75KW

    1.0KW

    2.7KW

    Dimension (LxWxH)

    850*650*1300(mm)

    800*750*1500(mm)

    1100*850*1600(mm)

    Weight (kg)

    400kg

    500kg

    850kg



Tags: Oil seal spring production equipment automobile parts spring making machine Compression spring production equipment springs machine supplier wire forming machine spring machine springs machine manufacturer spring forming machinery spring making machine torsion springs machine

Technical parameter
