Common mode inductor winding machine,flat wire winding machine | inductor winding machine factory,inductor forming machine

2024-04-25 Visits:

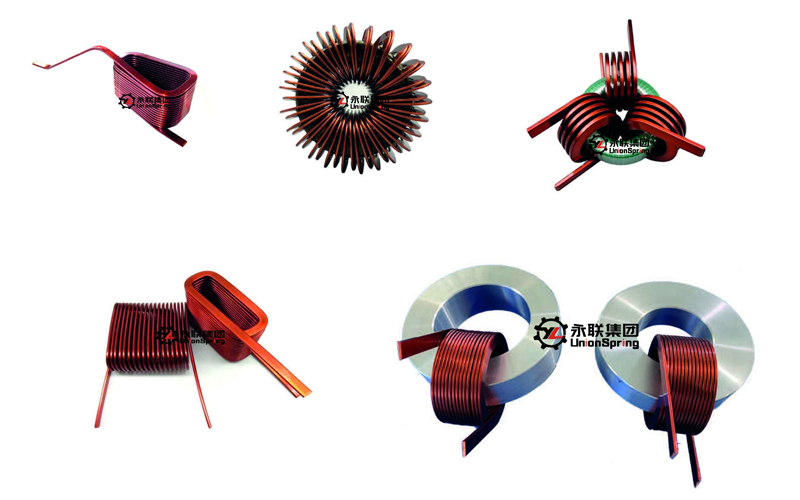

Common mode inductor winding machine is one of the important equipment in the electronic manufacturing industry. It is mainly used to produce common mode inductors, which is an electronic component widely used in fields such as power supply filtering, signal filtering and electromagnetic compatibility. With the continuous development of electronic technology, the demand for common mode inductors is also increasing year by year. Therefore, the market demand for common mode inductor winding machines is also showing a growing trend.

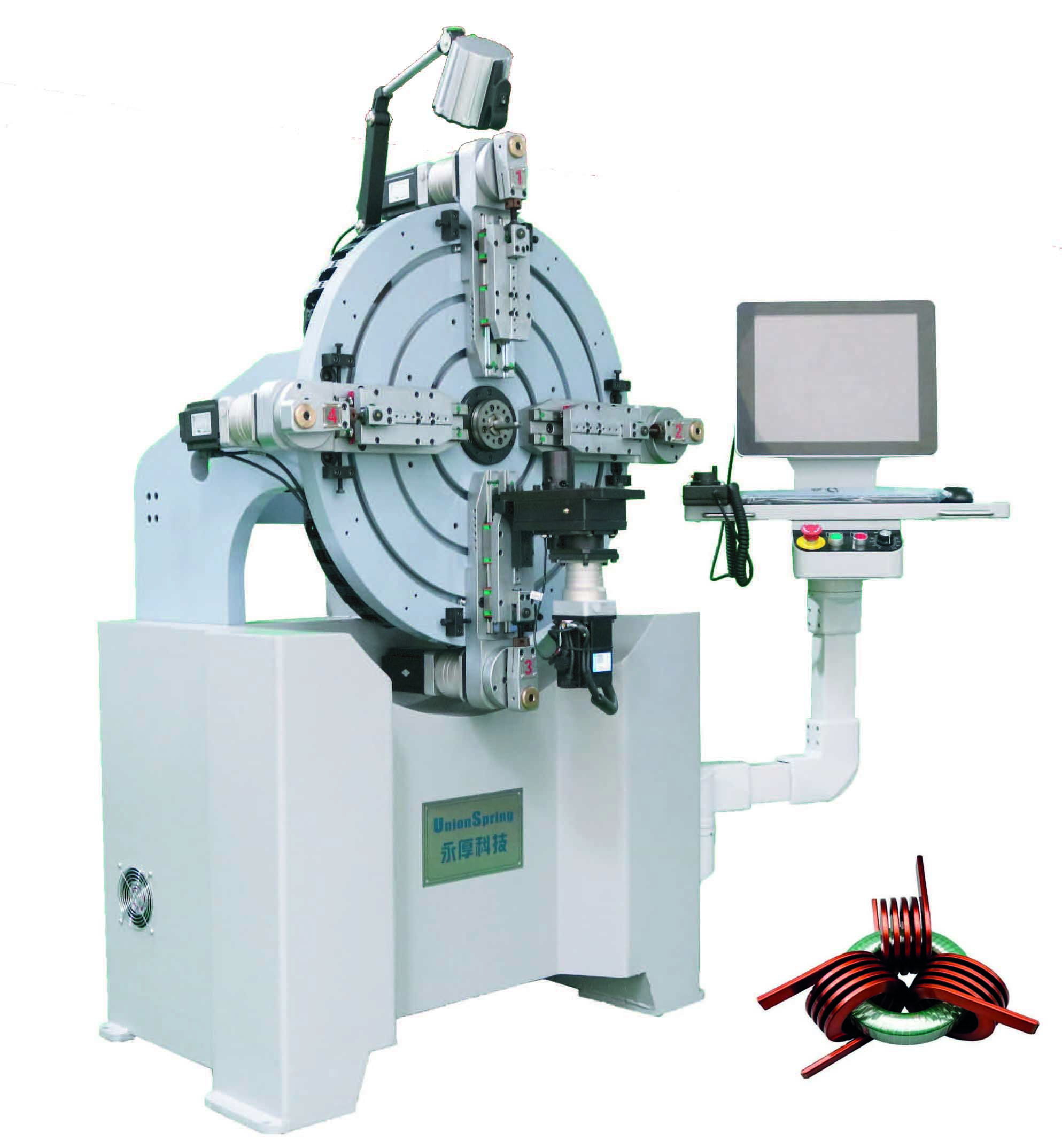

The core part of the common mode inductor winding machine is the winding mechanism, which is responsible for winding the copper wire on the inductor bobbin according to the preset number of turns and spacing. The winding mechanism usually consists of motors, reducers, screws, guide rails, clamps and other components. Through the synergy of these components, precise winding of copper wires is achieved. In addition, the common mode inductor winding machine also needs to be equipped with a control system to control the movement of the winding mechanism, adjust the winding parameters and realize automated production.

When using a common mode inductor winding machine for production, you need to pay attention to the following aspects: First, select appropriate winding parameters according to the production process requirements, such as the number of turns, spacing, wire diameter, etc.; Second, check the equipment regularly operating status to ensure that the equipment is in good working condition; finally, pay attention to operating specifications to avoid equipment damage or production accidents due to misoperation.

In addition to the winding mechanism and control system, the common mode inductor winding machine also needs to be equipped with some auxiliary equipment, such as pay-off racks, take-up racks, tension controllers, etc. The function of these auxiliary equipment is to ensure the stability of copper wire during the winding process and improve production efficiency and product quality. For example, the pay-off rack and the take-up rack can be used to store and collect copper wires respectively to avoid confusion or knotting of copper wires during the production process; the tension controller can control the tension of copper wires to avoid excessive tension or tangles. Product quality problems caused by being too small.


In practical applications, common mode inductor winding machines are widely used in the production of various electronic products, such as computers, communication equipment, home appliances, etc. With the continuous advancement of technology, common mode inductor winding machines are also constantly updated to continuously improve production efficiency and product quality. For example, some high-end common mode inductor winding machines have achieved fully automated production, greatly improving production efficiency and reducing labor costs.

However, there are also some problems and challenges during the use of common mode inductor winding machines. For example, since copper wire will produce certain stress and deformation during the winding process, the winding parameters need to be precisely controlled to avoid product quality problems. In addition, due to the continuous upgrading of electronic products, the demand for common mode inductors is also constantly changing, which places higher requirements on the production efficiency and flexibility of common mode inductor winding machines.

In response to these problems and challenges, manufacturers and users of common mode inductor winding machines need to continue to innovate and improve technology. For example, the production efficiency and stability of the equipment can be improved by optimizing the structure and control system of the winding mechanism; at the same time, intelligent technology can also be introduced to realize automated production and remote monitoring of the equipment, further improving production efficiency and reducing operating costs. .

In short, as one of the important equipment in the electronics manufacturing industry, the common mode inductor winding machine plays an important role in the fields of power supply filtering, signal filtering and electromagnetic compatibility. With the continuous advancement of science and technology and the changing market, common mode inductor winding machines also need to be constantly updated to adapt to new production needs and market demands. Through technological innovation and improvement, we believe that common mode inductor winding machines will play a more important role in the future.
