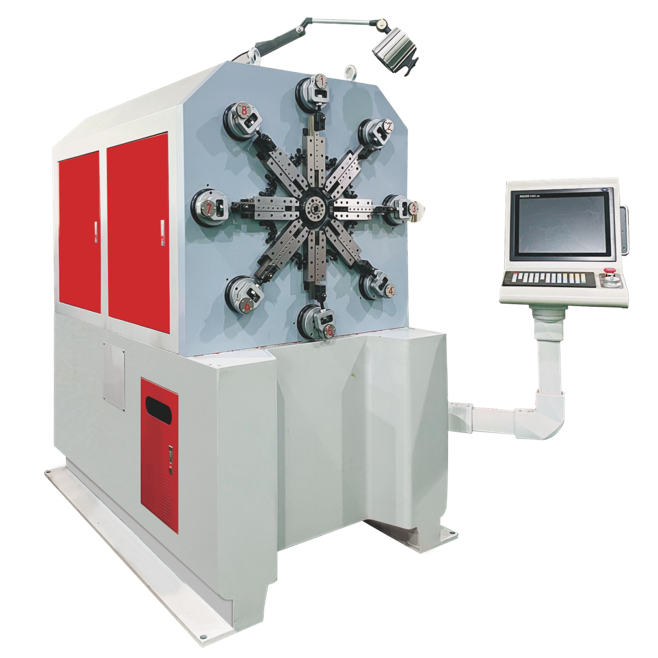

US-1225R Wire Rotary Camless Spring Machine

US-1225R Wire Rotary Camless Spring Machine
Send Inquiry
Description
Argument
Products Description

    1The camless spring machine adopts a unique camless and rockerless design, the adjustment speed is up to 50% faster than the traditional cam machine, with fast production speed, precise positioning, stable operation and powerful expandability.

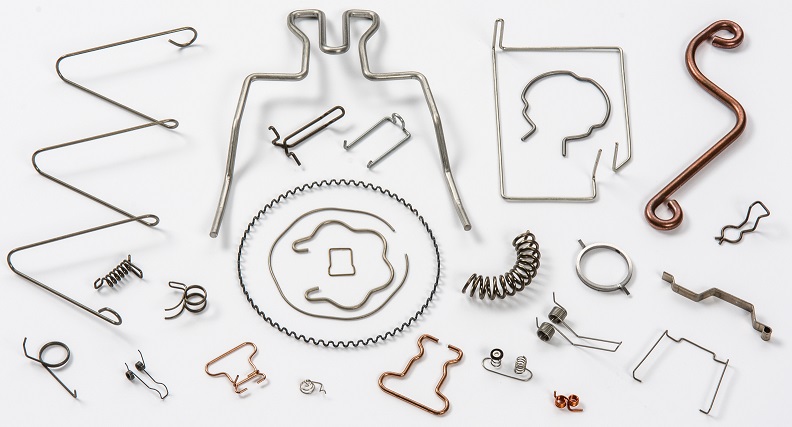

    2Independently controlled by multiple groups of servo motors, it has the advantages of traditional 8-station machinery and also has 1 group of free hands, which can go up and down, left and right, and play freely to produce difficult springs, easier, faster and more accurate.

    3Intelligent module, automatic detection and alarm, Windows window operation, Chinese and English display, easy to learn and use.


Tags: inductor coil making power inductor coil power inductor springs machine supplier wire forming machine spring machine springs machinery springs machine springs machine manufacturer spring forming machinery

Technical parameter

    Model

    US-1225R

    Wire Diameter

    Ø0.3Ø2.5MM

    Axis

    12-14

    Wire Feed Wheel Sets

    2Sets

    Slide Axis

    0.75KW×8

    Quill Rotary Axis

    0.75 KW

    Wire Rotary Axis

    2.7KW

    Wire Feeding Axis

    2.7 KW

    Spinner Axis(Optional)

    0.4KW

    Free Arm Axis(Optional)

    0.4KW

    Dimension (LxWxH)

    1650x1300x1750 (mm)

    Weight (kg)

    1500kg
