CNC spring coiling machine is an advanced mechanical equipment widely used in various spring manufacturing fields. It has the characteristics of high precision, high efficiency and high automation, and has become an indispensable and important equipment in modern spring manufacturing industry. This article will introduce in detail the structure, working principle, application fields and future development of CNC spring coiling machines.

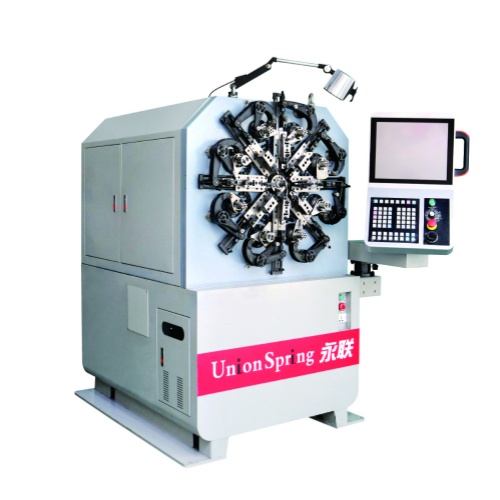

1. Structure of CNC spring coiling machine

CNC spring coiling machine is mainly composed of control system, transmission system, spring coiling mechanism, clamp and hydraulic system. Among them, the control system is the core of the CNC coil spring machine, which is responsible for controlling the operation and operation of the entire machine. The transmission system is mainly composed of motor, reducer and transmission shaft, etc., which provides power for the coil spring mechanism. The coil spring mechanism is the core working component of the CNC spring coiling machine. It completes the spring coiling process through precise transmission and control. The clamp is used to fix the raw material of the spring to ensure the stability and accuracy of the rolling process. The hydraulic system provides necessary lubrication and cooling functions to ensure the normal operation of the equipment.

2. Working principle of CNC spring coiling machine

The working principle of the CNC spring coiling machine is mainly to precisely control and coordinate the transmission system and coiling spring mechanism through the control system to achieve automatic spring coiling. First, the raw material is fixed on the coil spring mechanism through a clamp, and the transmission system provides power to the coil spring mechanism to start rotating. Then, the control system accurately controls and adjusts the movement trajectory, speed and strength of the coil spring mechanism according to the preset programs and parameters to complete the spring rolling process. During the entire process, the hydraulic system provides necessary lubrication and cooling to ensure the stable operation of the equipment.


3. Application areas of CNC spring coiling machines

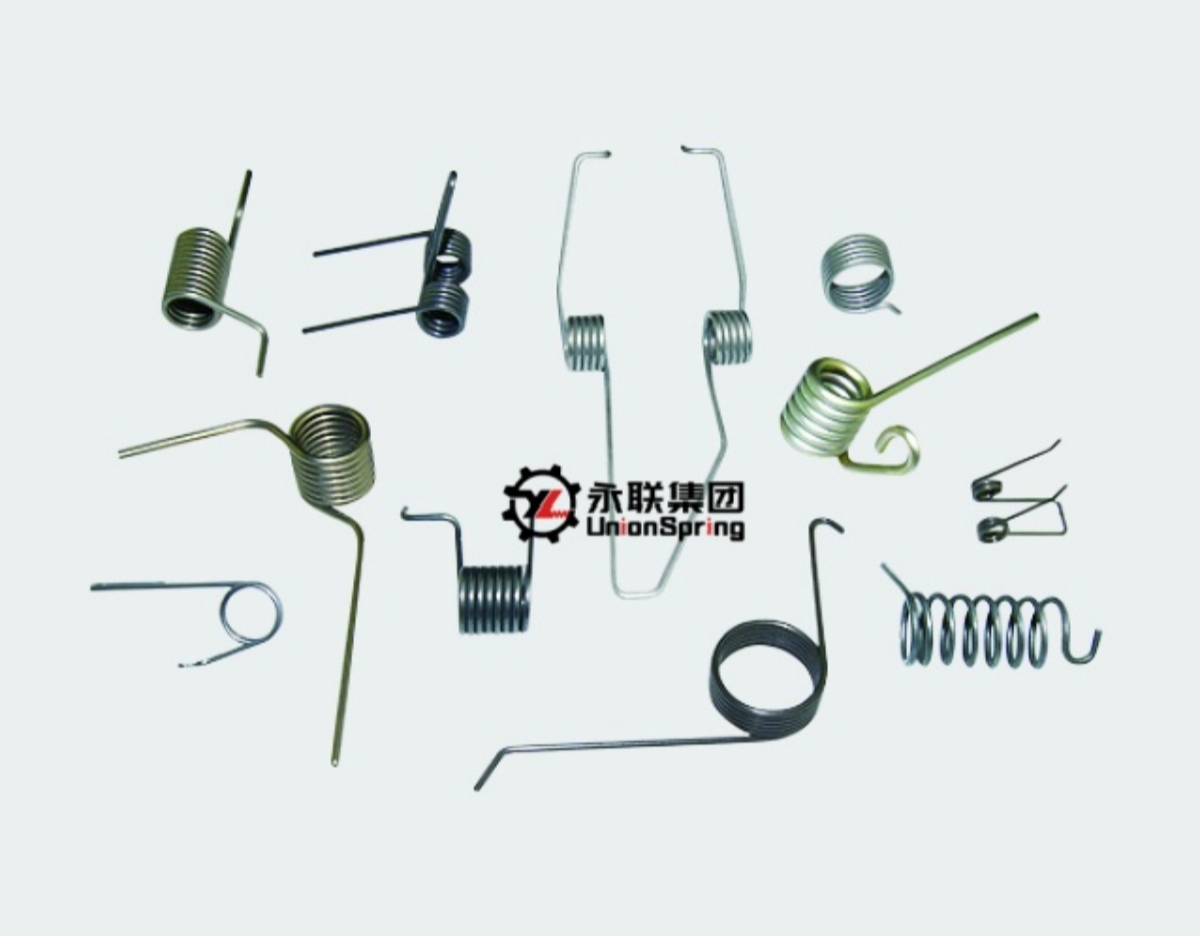

CNC spring coiling machines are widely used in various spring manufacturing fields, such as automobiles, machinery, electronics, aviation, etc. In the automotive field, CNC spring coiling machines are used to manufacture various automotive suspension springs, shock absorber springs, etc. In the mechanical field, CNC spring coiling machines are used to manufacture various mechanical springs, such as valve springs, clutch springs, etc. In the electronic field, CNC spring coiling machines are used to manufacture springs for various electronic components, such as switch springs, contact springs, etc. In the aviation field, CNC spring coiling machines are used to manufacture various high-precision and high-strength springs to meet the special needs of aircraft.

4. The future development of CNC spring coiling machines

With the continuous advancement of science and technology and the rapid development of industry, CNC coil spring machines will face higher challenges and opportunities in the future development. First of all, with the popularization of smart manufacturing and the industrial Internet, CNC spring coiling machines will become more intelligent and networked, achieving seamless connection and collaborative work with other equipment. Secondly, with the continuous emergence of new materials and new processes, CNC spring coiling machines will be able to produce more complex and high-precision spring products to meet the needs of more fields. Finally, with the increasing emphasis on environmental protection and sustainable development, CNC spring coiling machines will pay more attention to energy saving, emission reduction and environmentally friendly production, and promote the sustainable development of the spring manufacturing industry.

In short, as an important mechanical equipment, CNC spring coiling machine plays an indispensable role in modern spring manufacturing industry. With the continuous advancement of science and technology and the rapid development of industry, CNC spring coiling machines will continue to innovate and improve in future development, injecting new impetus into the development of the spring manufacturing industry.
